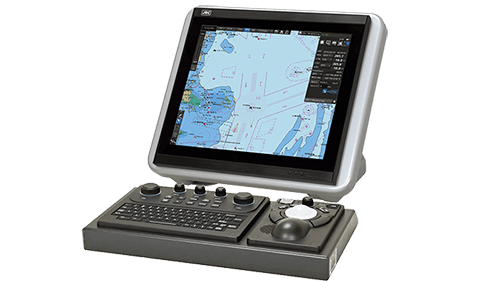

ECDIS JAN-7201S/9201S

Description

ECDIS

The Electronic Chart Display and Information System (ECDIS) is a geographic information system for voyage planning and route monitoring to support the safety navigation of ships at sea. And in response to the latest revision of the International Convention for the Safety of Life at Sea (SOLAS), the International Maritime Organization (IMO) enforced the mandatory installation of the ECDIS by July 2017 according to vessel’s category.(Requirements for the equipment and operation qualification are subject to approval from the country with which the ship is registered and recommendations from the classification society of the ship.)

The ECDIS onboard a ship uses information from the automatic identification system (AIS) and superposes the images with navigational chart information, thus accurately displaying dynamic information on other ships around. Also the ECDIS plays central roles in the safe navigation of the ship and provides safety functions, including the generation of warnings when the ship approaches dangerous areas. The ECDIS is useful for marine accident avoidance and serves as equipment indispensable to the safe navigation of ships.

Type-specific training (TST)

Unlike JRC’s conventional ECDIS models, this ECDIS has adopted a new operation system and a TST program supporting the new operation system is required. The TST for the new ECDIS is given at JRC’s major branches, agents, and training institutions around the world. The training will be given onboard or offices by instructors dispatched at the request of customers. Furthermore, PC software is available for users’ self-learning at home or onboard. For more information about TST, contact your JRC representative.

Spesification :

Model	19-inch model	JAN-7201S
Model	26-inch model	JAN-9201S
Conforming to IMO standards		✓
Hardware function
Display unit		JAN-7201S: 19-inch SXGA color LCD, 1280 × 1024 pixels JAN-9201S: 26-inch WUXGA color LCD, 1920 × 1200 pixels
Central control block		Intel Core i5 2515E 2.5GHz 2GB main memory SSD × 2 DVD drive × 1
Power supply		24V DC and single-phase 100 to 115V AC or 220 to 240 V AC at 50/60 Hz
Power consumption		Rating JAN-7201S: 200 VA approx., JAN-9201S: 240 VA approx.
Chart display function
Chart database		ENC: S-57 Ed3.0/3.1 and S-63 AVCS (AIO supported), NAVTOR ENC Service, Jeppesen ENC Service Raster charts: ARCS Personal chart: Jeppesen Ed.3 Professional / Professional+
Operation mode		TM (true motion)/RM (relative motion) display
Azimuth display mode		True motion mode: North UP/Course UP/Head UP/Waypoint UP Relative motion mode: North UP/Course UP/Head UP/Waypoint UP
Scale		1:1,000 to 1:40,000,000 (SXGA) / 1:20,000,000 (WUXGA)
Range		0.125, 0.25, 0.5, 0.75, 1.5, 3, 6, 12, 24, 48, 96NM
Multi-window display		Upper-lower split / Left-right split / Picture-in-picture
Route planning function
Route creation		Table/Graphic editing
Route editing		Waypoint addition / deletion / edition Alternative route creation Route copy Connection between routes Import / export (in CSV)
Safety check		Yes
Number of routes displayed		Four types max.
Navigation-monitoring function
Own ship		Monitoring for position, wake, and dragging anchor
Route monitoring		Water depths, obstacles, approaching prohibited areas, course deviation, waypoints, and arrival time
Other ship monitoring		AIS display: 500 targets max.
User map
Number of display points		^{100,000 points (marks and lines)}
Import/Export		^{Possible with USB memory}
Other functions
Data display function		Conning data block display
Self-diagnostic function		Standard
Remote maintenance function		Standard
Playback		Navigation data (3 months max.) Logbook (3 months max.)

Download Catalog

1 file(s) 2 MB

Download
