Marine Radar JMA-3400 Series

Marine Radar JMA-3400 Series

Established fact that a reader will be distracted by the readable content of a page when looking at its layout. The point of using Lorem Ipsum is that it has a more-or-less normal distribution of letters as opposed.

Category: Tag:

Description

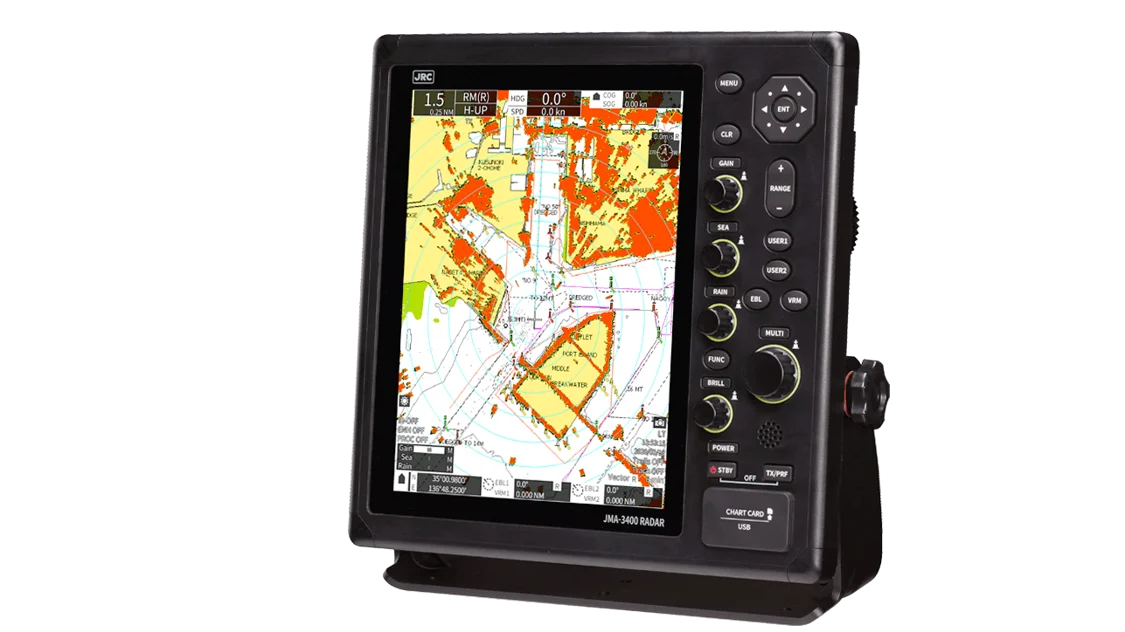

Display

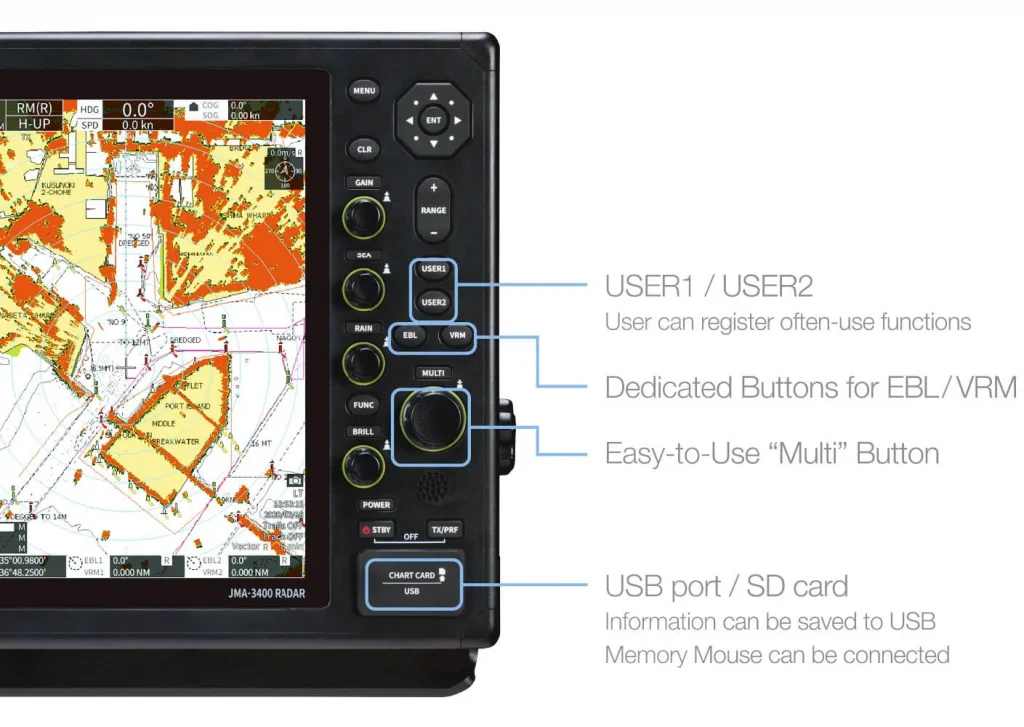

The 12.1-inch dimmable LCD provides excellent visibility and durability. It reduces reflection of sunlight and shows clear images of even the smallest targets. The ergonomic keyboard offers user customizable keys. Programming the USER keys give you instant access to your favourite functions.



The newly developed thin body is reduced till only 97.1 mm depth, so that it can be installed on small vessels where effective use of the limited space needs to be taken in account.

Constaview

Naturally our patented real time Constaview functionality is incorporated into the new radar system, processing the radar image before being displayed, generating a smooth rotation when sailing in Head-Up mode. To use real-time Head-Up, own ship position information (GPS connection) and input of heading information (compass connection) is required. When changing to North-Up, the new radar image is displayed without any delay caused by the scanner rotation. By displaying the other ships moving with a tail and displaying the fixed objects such as land and buoys so that they do not pull the tail, the movements and fixed objects of other ships can be accurately read.

AIS

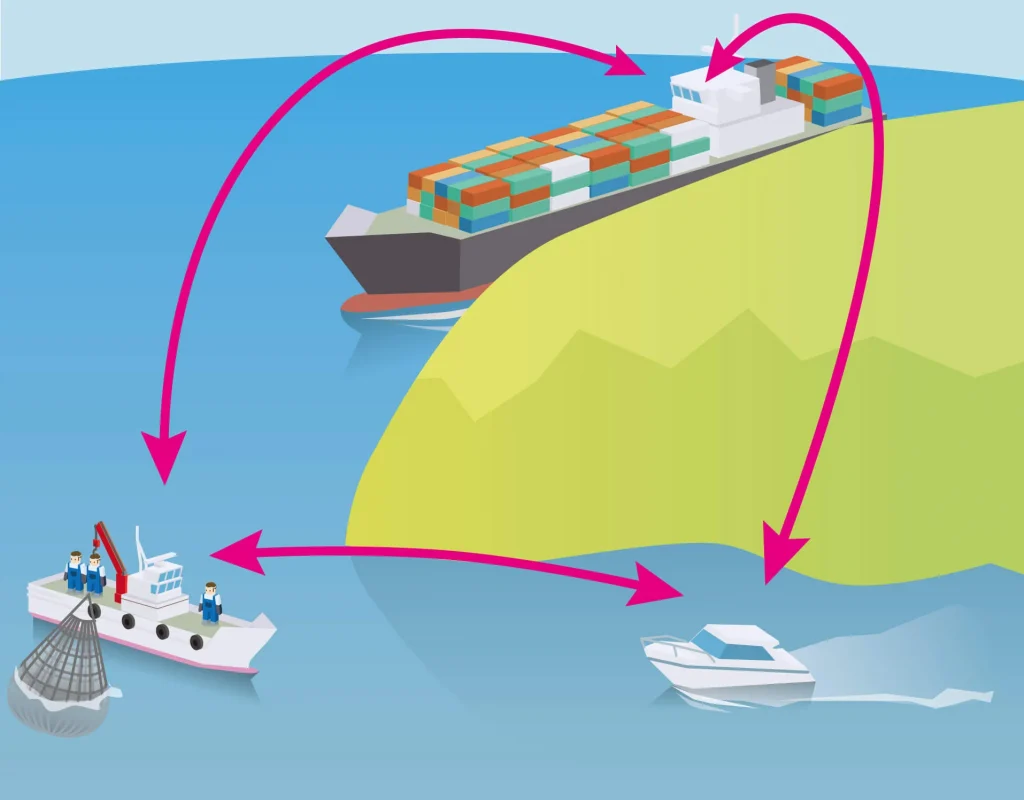

By connecting with AIS, it is possible to display ships on the island’s shadow where radar waves do not reach, enabling safer navigation.

In order to use the AIS display function, it is necessary to input own ship position information (GPS connection), heading information (compass connection) and AIS information.

Specifications



NameMarine Radar
ModelJMA-3404JMA-3406JMA-3406HSJMA-3411-4JMA-3411-4HSJMA-3411-6JMA-3411-6HS
Scanner
ModelNKE-2043NKE-2063ANKE-2063AHSNKE-2103-4NKE-2103-4HSNKE-2103-6NKE-2103-6HS
Transmitting frequencyX-band(9410 MHz)
Transmitting power4 kW6 kW10 kW
Scanner typeRadomeOpen
Antenna length2 ft3.9 ft4 ft6 ft
Rotation speed16-48 rpm16-27 rpm27-48 rpm16-27 rpm27 ft-48 rpm16-27 rpm27 ft-48 rpm
Beam widthH:4 °, V:25 °H:2 °, V:30 °H:1.9 °, V:20 °H:1.2 °, V:20 °
Maximum range48 NM72 NM*4
Range scale0.0625,0.125,0.25,0.5,0.75,1,1.5,2,3,4,6,8,12,16,24,32,48,64,72 NM*4
Range resolution4 kW:22 m,6 kW:25 m,10 kW:30 m(4 ft),30 m(6 ft)
Minimum detective range4 kW:20 m,6 kW:25 m,10 kW:20 m(4 ft),22 m(6 ft)
Bearing accuracyless than ±1 °
Pulse width/Repitation frequency0.08 µs/4000 Hz*5, 0.08 µs/2250 Hz, 0.13 µs/1700 Hz*5, 0.25 µs/1700 Hz, 0.5 µs/1200 Hz, 0.8 µs/750 Hz, 1.0 µs/650 Hz
Display unit
ModelNCD-2364
Screen size and resolution12.1-inch SVGA color LCD, 600×800 dot
PPI effective diamater184 mm
Chart dataOverseas : NAVIONICS+ / Japan : new pec
Presentation modeRM : North-UP, Head-UP, Course-UP
TM : North-UP, Course-UP
GainAuto / Manual
Sea/RainAuto / Manual
Trail indicationShort : Off/0.25/0.5/1/2/3/4/5/6/10/15 min/All
Middle : Off/0.5/1/2/3/4/5/6/10/15/30 min/All
Long : Off/1/2/3/4/5/6/10/15/30/60 min/All
Super Long : Off/30 min/1/2/at 1 hr interval/24 hr/All
Off center2/3 radius of PPI
TT acquisition modeAuto / manual
Tracking target capacity30 targets
Acquisiton and trackingrange20 NM
Target dataTrue bearing, range, true course, true speed, CPA, TCPA
Vector mode and lengthTrue/relative vector, adjustable from 1 to 60 min
Guard zone2 zone (Auto TT:1)
AlarmsCPA/TCPA, new target, lost, system error
AIS target capacity100 targets
Power supply12/24 VDC24 VDC
Power consumptionApprox 60 WTypcal : approx 85 W
In maximum wind : approx 180 W		Typcal : approx 85 W
In maximum wind : approx 230 W		Typcal : approx 100 W
In maximum wind : approx 210 W		Typcal : approx 100 W
In maximum wind : approx 360 W		Typcal : approx 100 W
In maximum wind : approx 210 W		Typcal : approx 100 W
In maximum wind : approx 360 W
Operating temperature-25 ℃ to +55 ℃ (scanner), -15 ℃ to +55 ℃ (display unit)
Relative humidity : 93 %@40 ℃
WaterproofingIP26 (scanner), IP55*6 (display unit)

*4 : 72 NM is only 6 and 10 kW.
*5 : Only JMA-3404 and JMA-3406/HS.
*6 : IP55 when using the waterproof rubber cap.
