| RoHS | ✓ |
| Frequency (New) | Transmit 1626.5-1660.5 MHz, 1668.0-1675.0 MHz receive 1518.0-1559.0 MHz |
| Voice/facsimile | 4 kbps voice, G3 facsimile |
| Data | Streaming IP: 8, 16, 32, 64, 128, 256 kbps, standard IP: 432 kbps, SMS: 3G (up to 160 characters) |
| Antenna type | 54 cm flat diameter, 3 axis control system, GFRP enclosure |
| Beam width | 22° in 3dB direction |
| Power | 21.6-31.2V DC (optional External power supply unit 100-230V AC) |
| Consumption | Less than 180W |
| Power output PoE (New) | Up to 15.4W per port (total 32W max) |
| ADE environmental | Infrared: 500W/m2, ultraviolet: 54W/m2, icing 25mm, precipitation: 100mm/hr, wind: 100kn |
| Ship’s motion | Roll: ±30°/8 sec, pitch: ±10°/6 sec, yaw: ±8°/50 sec, surge: ±0.2g, sway: ±0.2g, heave: ±0.5g, rate of turn (ROT): ±6°/sec, headway: 30kn |
| E.I.R.P. | +22dBW +1/-2dB (class 8) |
| G/T | -7.0dB (class 8) |

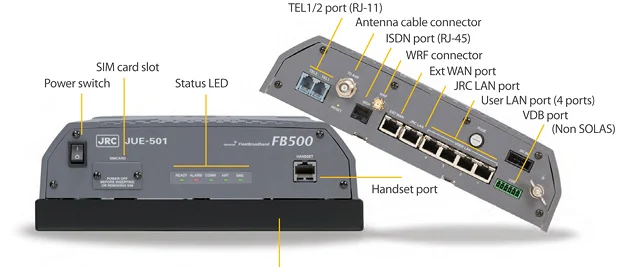

| Handset | 1 port (BDE) |
| RJ11 telephone/facsimile | 2 ports (BDE), 4 ports (optional Junction board) |
| LAN | 6 ports (BDE) 1 port: JRC LAN, 1 port: EXT WAN, 4 ports: free use and support PoE |
| ISDN | 1 port for 3.1k audio only (BDE) |
| External GPS input | IEC61162-1 (optional Junction board) |
| GPS output | Via LAN |
| External gyro input*1 | 1 port (optional Junction board) |
| WRF output | 1 port (BDE) |
| External buzzer | 2 ports (optional Junction board) |
| Voice distress button (New) | 1 port (BDE), 1 port (optional Junction board) for non SOLAS distress |
| ADE connector | 1 port – TNC female (BDE) |
| External input/output | Alarm output via JRC LAN (BDE), remote power switch control, incoming call output, incoming call acknowledge input (optional Junction board) |
| SIM card slot | 1 slot with protective cover (BDE) |
| Ambient conditions | Operating temperature: -25 to 55°C (ADE) -15 to 55°C (BDE, Handset)
Storage temperature: -40 to 80°C
IP protection rate: IP56 (ADE), IP22 (BDE), IPX0 (Handset)
Relative humidity: 0 to 95% non-condensing |
