| Model | JMR-5410-4X | JMR-5410-6X | JMR-5425-7X | JMR-5425-9X | JMR-5460-8S | JMR-5482-S | JMR-5482-SH |
|---|
| Display | colour raster scan PPI |
| Range scale | 0.125/0.25/0.5/0.75/1.5/3/6/12/24/48/96 NM |
| Scanners |
|---|
| Model | NKE-2103-4 | NKE-2103-6 | NKE-2255-7 | NKE-2255-9 | NKE-3710-8B | NKE-2632/-H*1 |
| Transmitting power | 10kW | 25kW | 70kW | 250W |
| Transmitting frequency | 9410MHz±30MHz | 9410MHz±30MHz | 3050MHz±25MHz | P0N:3035MHz,Q0N:3065MHz±4MHz or 3060MHz±4MHz |
| Antenna length | 4ft | 6ft | 7ft | 9ft | 8ft | 8ft | 8ft |
| Rotation speed | 27rpm | 27rpm | 24rpm | 24rpm | 14/17rpm(50/60Hz) | 24rpm | 48rpm |
| Horizontal beam width | 1.9° | 1.2° | 1.0° | 0.8° | 2.7° | 2.7° | 2.7° |
| Vertical beam width | 20° | 20° | 20° | 20° | 22° | 25° | 25° |
| Weight | 34kg | 36kg | 52kg | 55kg | 98kg | 85kg | 90kg |
| Pulse width | 0.08µs/2250Hz
0.25µs/1700Hz
0.5µs/1200Hz
0.8µs/750Hz
1.0µs/650Hz | 0.07µs/2250Hz,0.2µs/2250Hz
0.3µs/1900Hz,0.4µs/1400Hz
0.8µs/750Hz,1.0µs/650Hz
1.2µs/510Hz | 0.08µs/1700Hz
0.25µs/1700Hz
0.75µs/860Hz
1.0µs/650Hz | 0.07µs/(4.6µs,8MHz)/1860Hz or 2280Hz
0.14µs/(9.1µs,8MHz)/1860Hz or 2280Hz
0.29µs/(9.1µs,8MHz)/1860Hz or 2280Hz
0.57µs/(9.1µs,8MHz)/1280Hz
1.14µs/(18.3µs,8MHz)/640Hz |
| Duplexer | circular + diode limiter |
| Tuning | automatic / manual |
| Ambient condition | temperature:-25℃~+55℃; relative humidity:93%@ 40℃ | temperature:-25℃~+50℃
relative humidity:95%@ 35℃ | temperature:-25℃~+55℃
relative humidity:93%@ 40℃ |
| Processor |
|---|
| Model | NDC-1678 |
| Bearing indication | RM display:north-up / course-up / head-up TM display:north-up / course-up |

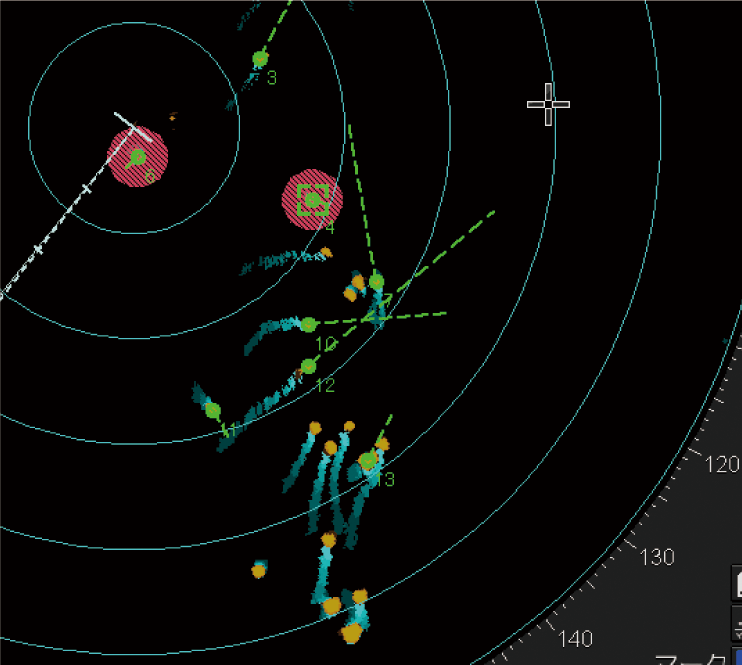

| Presentation mode | RM display with true trail, RM display with relative trail, TM display |
| EBL | 2(EBL1/EBL2)(center/independent)000.0° – 359.9°, digital display |
| VRM | 2(VRM1/VRM2)0.000~96.0NM, digital display |
| Trail indication | off/0.25/0.5/1/3/6/10/15/30/60-min and continuous |
| Chart | C-MAP MAX |
| Display |
|---|
| Model | NWZ-214(19-inch)/NWZ-208(26-inch) |
| LCD | 1280×1024 dot(SXGA)(19-inch)/1920×1200 dot(WUXGA)(26-inch) |
| PPI Effective diameter | ≥250mm (19-inch)/≥320mm(26-inch) |
| Connection cable | 5m (processor-monitor) |
| Number of TT tracking targets | 30 targets max.(expanding to a maximum 100 targets with an optional function added) |
| TT Tracking Range | Auto/Manual 32 NM max. |
| Number of AIS targets | 180 targets max.(expanding to a maximum 1,000 targets with an optional function added) |
| TT/AIS vector | True/Relative, variable from 1 to 120 minutes |
| Keyboard |
|---|
| Model | NCE-5794 |
| Connection cable | 5m(processor-keybord) |
| Ambient conditions | Operating temperature: -15 to 55℃; Relative humidity: 93% @40℃(processor,display,keyboard) |
| installation cable | CFQ-6912-20 length 20m(max length 65m) | CFQ-6912
2695110056
2695111160 | 2695110056 |
| Power supply(voltage) | DC21.6~36.0V | DC21.6~30.0V, AC220V | DC21.6~36.0V, AC100V~240V |
Power consumption(max wind)
NWZ-214 | Max. 350W | Max. 400W | Max. 500W | Max. AC:600VA/DC:200W*2 | Max. AC:1300VA/
DC:200W | Max. AC:1700VA/
DC:200W |
Power consumption(max wind)
NWZ-208 | Max. 400W | Max. 450W | Max. 550W | Max. AC:600VA/DC:250W*2 | Max. AC:1300VA/
DC:250W | Max. AC:1700VA/
DC:250W |
| Option |
|---|
| Trackball Operation Unit | NCE-5605 |
| Trackball Operation Unit Installation Cable | 7ZCNA4152 |
| Keyboard Operation Unit | NCE-5625 |
| Junction Box | NQE-1143 |
| Sensor LAN Switch Unit | NQA-2443 |
| Rectifier | NBA-5111 |
| Interswitch Unit | NQE-3141-4A(4ch)/NQE-3141-8A(8ch) |
| Power Control Unit | NQE-3167 |
| TT/AIS Option | Software licence |
| Plotter mode | Software licence |
Distributor for Remote Monitor
Display Connection | Video Distribution Amplifier:VAC-2001HB-A
Monitor Extension Kit:CQF-5957 |
| Monitor Stand | CWB-1660(26-inch)/CWB-1659(19-inch) |
| Monitor Cover | CWB-1621(26-inch)/CWB-1619(19-inch) |
| Monitor Hood | CWB-1620(26-inch)/CWB-1618(19-inch) |
| Printer | Printer:7HPNA4003 , L Type Stopper(Printer Fixture):QL-58 |
Operation Unit RS-422
Extension Cable | 10m:7ZCRD1746, 20m:7ZCRD1747, 30m:7ZCRD1748,
40m:7ZCRD1749, 50m7ZCRD1750(maximum length) |
| NSK Unit | NCT-4106A |
| CMH-2370 Serial LAN Interface Circuit Spare Parts | 7ZXNA4020 |
| 7HPNA4003 Printer Spare Parts | 7ZXNA4011 |
