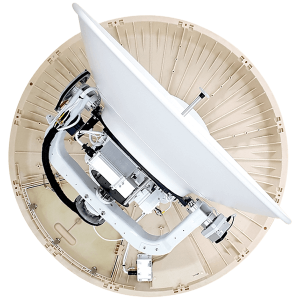

JRC JUE-100GX Global Xpress Terminal

JRC JUE-100GX Global Xpress Terminal

High-speed ship-to-shore data
communication environment

  • Combines GX and FB for continuous stability and high-speed
  • Upload more data with standard 5W and optional 10W BUC upgrade
  • Ensured coverage with expandable dual antenna interswitch
Categories: , , Tag: Brand:

Description

High speed

JRC is one of the world’s longest-established companies in the field of marine electronics, and a pioneer in global mobile L-band satellite communications as Inmarsat’s longest-serving manufacturing partner. From the beginnings of the maritime satellite communications era JRC has invested heavily in research and development year-on-year. With our new design of JUE-100GX Ka-band terminal and antenna delivering high-speed ship-to-shore data, JRC continues to offer a creative solution to the maritime industry while also serving the next smart shipping era.

Inmarsat Fleet Xpress is a system that combines the GX (Ka-band) and the FB (L-band). The GX and FB switches automatically depending on the weather and provides users with high-speed and stable communication at all times. The GX provides high-speed communication during fine weather, and the FB provides limited-speed but stable communication on rain fading.

Upgradable BUC

High-capacity data uploading is possible as the JUE-100GX can easily be upgraded with high throughput service by selecting 10W High Power Block Up Converter (BUC) system as an option at purchasing instead of the standard 5W. It uses the same antenna size, there is no need to replace the Below Deck Terminal (BDT) and no additional components are required.

Remote assistance

JRC provides a responsive web interface to monitor, manage and control the antenna system from shore via satellite connection. The installation wizard automates this functions for system configuration so that operators are minimally involved in system installation and operation, including automatic cable loss compensation, line-up test and auto diagnostics. Maintenance operation such as software updates and alarm pack acquisition can now be performed without a service engineer visiting the ship. This way users are ensured of remote assistance when required and limit their operation downtime.

One-stop service contract

JRC offers separately a one-stop service contract including airtime contract, terminal installation and onboard LAN design and construction for satellite communication.
Customers do not have to make separate arrangements and can just simply choose the best suited contract plan combined with the latest terminal while saving expenditure.

Specifications

Above Deck Unit (ADU)
Axis configuration3 axes: Azimuth axis, Elevation axis, Cross-level axis
Azimuth angular rangeUnlimited
Elevation angular range-20 ° – +115 °
Cross-level angular range±37 ° or less
Pointing stability accuracyError 0.2 ° or less, under maximum shaking conditions
Upset conditionRoll: ± 25 °/ 6sec, Pitch: ± 15 °/ 6sec, Yaw: ± 8 °/ 6sec, Turn: 12 °/sec and 5 °/sec2 or less
Receive (Rx)Frequency: 19.2 GHz-20.2 GHz Ka band, Gain: 44 dBi @ 19.7 GHz (including radome loss)
Transmission (Tx)Frequency: 29 GHz-30 GHz Ka band, Gain: 47.7 dBi @ 29.5 GHz (including radome loss)
Onboard equipment IFL interfaceOne 50Ω-N female connector, TX / RX: 10 MHz, 50 MHz, 400 MHz, 433 MHz L-band IF frequency (950 MHz -2150 MHz), DC voltage BUC & pedestal (LNB)
Reception performance index (G / T)*120.1 dB / K (@ 19.7 GHz, including radome loss)
PolarizationCircular polarization (Rx: LHCP, Tx: RHCP)
BUC5 W (standard), 10 W (optional)
BDT-ADU connection cable*2One 50 Ω coaxial cable Rx signal, Tx signal, FSK signal, reference signal, power supply
Input power48 V DC (up to 300 W) with one RF cable
Below Deck Terminal (BDT)
Display256 x 64 Graphic OLED
LEDDisplays 3 LEDs Power, Tracking and Error
USB port2 ports (front panel), 1 port (rear panel, Wi-Fi dongle)
Gyro compass interfaceCAN, NMEA 0183 (recommended)
Serial interfaceRS-232C for console (57600bps 8, N, 1)
Ethernet portRJ 45 (4 ports each), TCP / IP connection
Secondary ACU interfaceBuilt in BDT
Input power100 – 240 V AC, 50 – 60 Hz, 3 A
Secondary Antenna Control Unit (ACU / dual antenna system)*3
Display256 x 64 Graphic OLED
LEDDisplays 3 LEDs Power, Tracking and Error
USB port2 ports (front panel),1 port (rear panel, Wi-Fi dongle)
Gyro compass interfaceCAN, NMEA 0183 (recommended)
GPS interfaceNMEA
Serial interfaceRS-232C (57600 bps 8, N, 1)
Ethernet portRJ 45 (4 ports each), TCP / IP connection
Input power100 – 240 V AC, 50 – 60 Hz, 3 A

*1 :Depending on reception conditions with an elevation angle of 30 ° or more
*2 : Antenna cable
*3 : Option
