The JSS-2150/2250/2500 MF/HF Class A DSC radio equipment features an intuitive user interface and a highly reliable circuit that enables all-mode continuous full power operation.

Categories: , Tags: ,

Description

Class A 6CH DSC watch-keeping built-in

The MF/HF has Digital Selective Calling (DSC*) as standard with a built in Class A 6CH DSC watch-keeping receiver. You can transmit and receive digital selective calls for quick and efficient establishment of distress, urgency, safety and routine communication with other ships and coast stations.

In distress situations, the MF/HF sends an alert once you press the distress button. The integrated DSC watch-keeping receiver monitors distress alarms through continuous scanning of distress frequencies.

* Fully meets new ITU-R M.493-13.

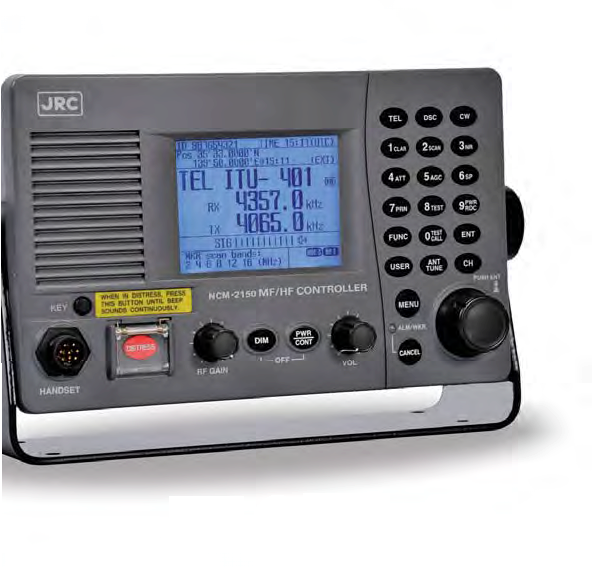

MF/HF controller settings

The MF/HF controller uses a 3.8-inch high visibility LCD display, which you can adjust at your own convenience. The display has 10 dim settings and you can set the contrast up to 11 different levels. An integrated screensaver and the ability to assign a commonly used menu to a user key for direct access, are just a few of the possibilities.

Distress alerts

The MF/HF controller includes a prominent distress button, with features to prevent accidental activation. When in distress, you can send a DSC message instantly, transmitting your MMSI, position, time of position and nature of distress, enabling an immediate response for search and rescue efforts.

Digital audio

The MF/HF controller integrates an advanced digital audio amplifier, which increases the amount of power, making the receiving message loud and clear.

Connect a remote control

Getting a second operation controller onboard is easy. Connect a second MF/HF controller to the transceiver and position the controller at a secondary location on the ship. The second MF/HF station is fully operable and you can transfer saved channel data to optimize your operation.

Interfacing

Unified design

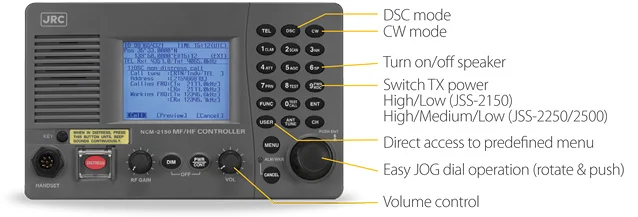

The MF/HF controller design allows you to carry out all operations simply by using the same unified keyboard layout as found in JRC’s VHF radiotelephone. The keypad is solid and responsive, which allows for precise operation. The keys are also backlit, making it easy to operate in low-light settings on the bridge.

GMDSS console

The MF/HF models can be installed together with a set of Inmarsat-C: JUE-87 in the optional GMDSS console: NCU-531A. Optionally the controller and handset of VHF radiotelephone: JHS-770S/780D can be installed in the same console.

Spesification :

Specs

NameMF/HF Radio equipment
ModelJSS-2150JSS-2250JSS-2500
IMO type approved✓
Output power150W250W500W
RegurationsIMO A.806(19), A.694(17), MSC68(68), MSC/Circ.862, IEC 60945 Ed.4 2002-08
Transmission frequency1605.0 ~ 27500.0kHz(100Hz steps)
Reception frequency90.0 ~ 29999.9kHz(100Hz steps)
Frequency stabilityWithin ±10Hz
DSC watch keeping frequency2187.5kHz, 4207.5kHz, 6312.0kHz, 8414.5kHz, 12577.0kHz, 16804.5kHz
Type of emissionJ3E, F1B, A1A, H2B, J2D, H3E(receiving only)
User programmable channelUp to 400 (20 channels x 20 groups)
ITU preset channel1722ch
Channel switching time15sec or less
Communication methodPush to talk (simplex, semi-duplex)
Reception attenuation(ATT)4 steps : 6dB, 12dB, 18dB, OFF
Display3.8 inch LED Backlit (320 by 240 pixels)
Microphone input-54dBm
Audio outputLoud speaker : 5W(8Ω), Handset phone : 1mW(150Ω)
InterfaceIEC61162-1(GPS/AME/RMS)
Compass safe distance2.0m
Receiving systemDouble superhetelodyne
Sensitivity(SINAD 20dB)J3E : ≤2.5µV, F1B : ≤0.7µV, A1A : ≤1.4µV
RMS interfaceBuilt in
Transmitter output 1.6 – 4MHzDC : 100WpepDC : 100Wpep,
AC : 200Wpep		DC : 100Wpep,
AC : 400Wpep
Transmitter output 4 – 27.5MHzDC : 150WpepDC : 150Wpep,
AC : 250Wpep		DC : 150Wpep,
AC : 500Wpep
Power DC21.6 to 31.2V
ACoption(90 to 132V, 180 to 264V)90 to 132V, 180 to 264V
ConsumptionDC : TX ≤30A, RX ≤5ADC : TX ≤40A, RX ≤6A
AC : TX ≤2.0kVA, RX ≤0.5kVA		DC : TX ≤40A, RX ≤6A
AC : TX ≤3.0kVA, RX ≤0.5kVA
Power savingRelays are turned off when sleep mode
Ambient conditionOperating temp : -15 to 55°C(controller), -25 to 55°C(antenna tuner)
Storage temp : -15 to 55°C(controller), -25 to 70°C(antenna tuner)
IP protection rate : IP22(controller), IP66(handset)
Relative humidity : 0 to 93% non-condensing
