Inmarsat C JUE-87

Inmarsat C JUE-87

JRC JUE-87 Inmarsat C is a digital satellite communication system whereby data can be encoded into digital format, whether text, numeric data from instruments or other information in digital format can be sent and received over the system. A simple user interface allows sending and receiving messages.

Category: Tag:

Description

All-in-one Internally Mounted Equipment (New)

The new Internally Mounted Equipment (IME) with display features a high brightness color LCD with an extra wide viewing angle.

Data terminal unit is integrated into the Inmarsat C IME allowing for a straightforward installation approach and is ready for our Remote Maintenance System (RMS).

USB

The USB 2.0 port located on the front panel allows you to connect a mass storage device to save and load messages.

The display

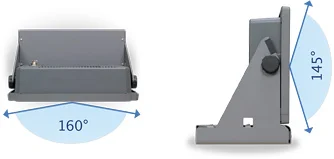

Our new IME with 10.4 inch display features a color display with a variety of coloring menus. Factory default color is Ocean Day. The LCD gives you a bright picture with excellent color consistency, even when you’re viewing the display from the side.

Self diagnosis

JRC JUE-87 Inmarsat C Mobile Earth Station(MES) incorporates various self-diagnostic programs to facilitate maintenance and troubleshooting, reporting any possible problems it might suffer. The results are displayed on the display of IME.
These functions allow for easy maintenance and more reliability. In addition, automatic testing for performance verification and commissioning via the satellite channel is also available.

Remote Maintenance System (RMS)

JRC’s unique RMS allows remote monitoring of bridge equipment from ashore. Using JRC VDR and INMARSAT FB satellite communication equiipment, JRC can establish a highly secured connection to the vessel and cost-effectively and accurately determine the operating status of the JRC equipment while at sea.
JRC’s RMS just got better with the addition of the new JUE-87 which allows connected satellite communication equipment’s, such as JUE-251 & JUE-501, status to be polled from the shore.

Specifications

ModelJUE-87
Inmarsat type approved✓(Class 2)
RoHS✓
Display10.4 inch color LCD, 640×480 pixels 450cd/m²
FrequencyTX : 1626.5 to 1646.5MHz
RX : 1537.0 to 1544.2MHz
Channel spacing5kHz
E.I.R.P.14±2dBW (at 5° angle)
G/T-23.0dB/K min
ModulationTX/RX : 1200 symbols/sec BPSK
Data rateTX/RX : 600bps
InterfaceExternal Buzzer : 3ports (JB1x1, JB2x2)
Remote distress button : 2ports (JB1x2)
Security button : 4ports (JB1x2, JB2x2)
GPS input (NMEA) :1port (JB1)
Alarm output (dry contact) : 1port (JB1)(New)
Alarm output (NMEA) : 1port (JB1)(New)
Alarm / AIS input (NMEA) : 1port (JB1)(New)
LAN port (RJ-45) : 1port (IME)
DTE port (serial) : 1port (IME)
Keyboard : 1port (IME)
Printer : 1port (IME)
Serial : 1port (IME)
Distress message controller : 1port (JB1)
Ambient conditionOperating: EME -35 to +55°C, IME -15 to +55°C
Relative humidity: 0 to 95% non-condensing
Icing: up to 25mm (EME)
Precipitation: up to 100mm/hour (EME)
Wind: up to 100knots (EME)
Internally Mounted Equipment (IME)
ModelNTF-318
PowerDC 24V (19.2 to 31.2V)
ConsumptionTransmit: 100W, Standby: 15W
Externally Mounted Equipment (EME)
ModelNAF-253GM (Unified pole mounting bracket)
AntennaType: helical, Pattern: hemisphere, Polarization: right-hand circular
Printer
ModelNKG-800
Line interfaceParallel
PowerDC 24V (+19.2 to 31.2V)
ConsumptionApprox. 35W
External power supply
ModelNBD-904
Line VoltageAC100 to 230V, DC24V
Line voltage selectionAC90 to 264V, DC19.2 to 31.2V
OutputDC24V 6.5A continuous
Option
External buzzerNCE-5547Max. 3units
Remote distress buttonNQE-3225Max. 2units
Data terminal equipmentNDZ-227Max. 1unit
Bracket for data terminalMPBP31721
Keyboard for data terminalNDF-369
Security buttonNQE-3224Max. 4units
Junction box2NQE-3223
Wall mount adopter for buzzer/button7ZZSC0095
Coaxial cableCFQ-5922A4(40m), CFQ-5922A5(50m)

Download Catalog

Icon

Inmarsat C JUE-87

1 file(s) 4 MB
Download
